基本情况

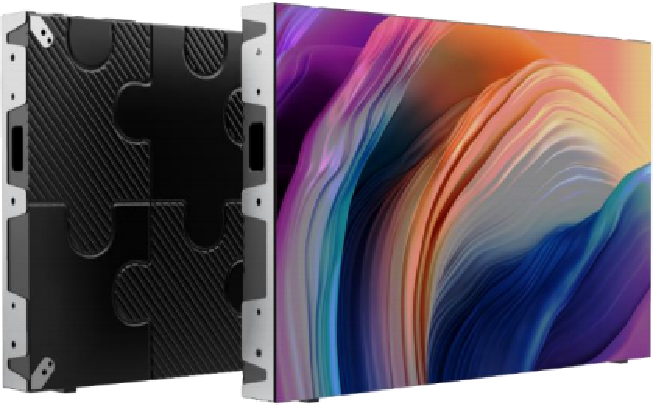

BKY-B升级款— HDMI产品

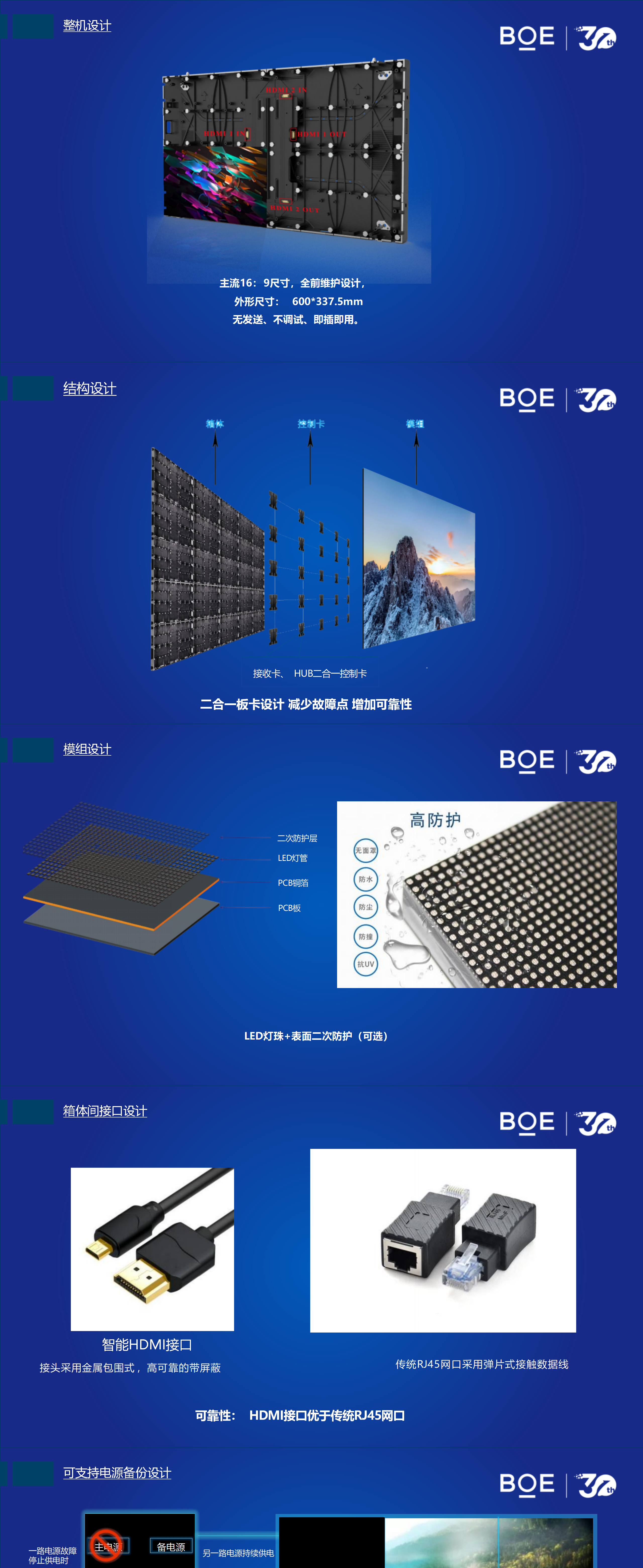

二合一板卡设计 减少故障点 增加可靠性

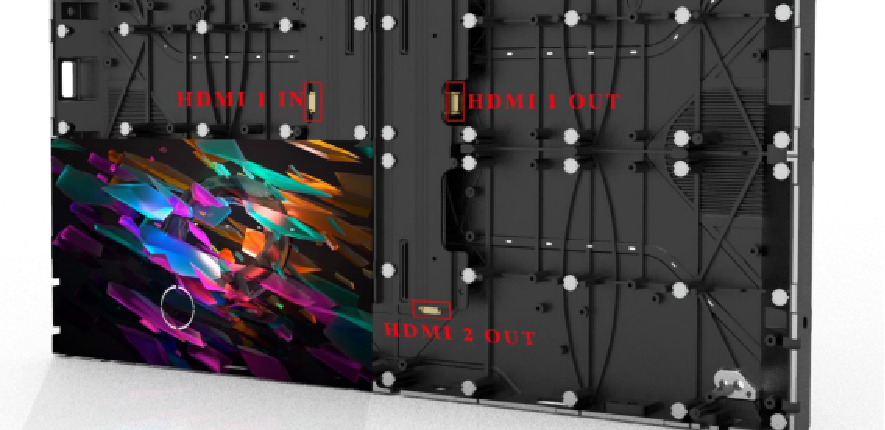

智能HDMI接口
接头采用金属包围式 ，高可靠的带屏蔽

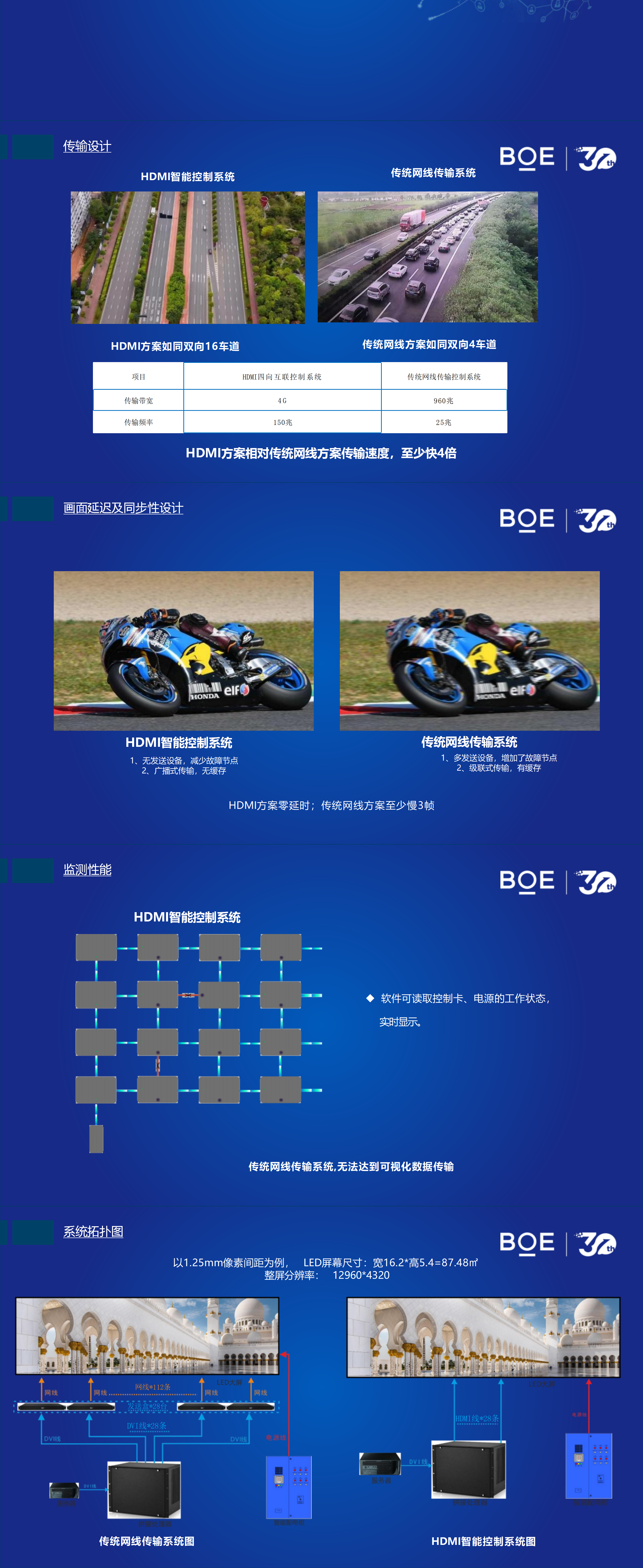

HDMI方案比传统网线方案稳定可靠
HDMI智能控制卡
. 傻瓜式免调试,无需设置连线方式,接 好线,上电即可显示,即插即用
. 更换故障卡无需设置,降低维护成本
产品参数:
| 参数名称 | 技术参数 | ||
| 像素间距 | 1.25mm | 1.56mm | 1.875mm |
| 像素组成 | 1RGB | 1RGB | 1RGB |
| 单元分辨率 | 480 ×270Dots | 384 ×216Dots | 320 × 180Dots |
| 像素密度 | 640000dot/m² | 409600dot/m² | 284444dot/m² |
| 单元重量 | 8kg/panel | ||
| 单元尺寸(WxH) | 600mm × 337.5mm × 58mm | ||
| 单元对角线 | 27〞 | ||
| 单元宽高比 | 16:9 | ||
| 驱动方式 | 恒流驱动 | ||
| 材质 | 压铸铝 | ||
| 防护等级 | IP50 | ||
| 维护方式 | 前维护 | ||
| 显示亮度 | 0-650 cd/㎡(可调) | ||
| 单元功率(最大值) | ＜450w/㎡ | ||
| 单元功率(典型值) | ＜140w/㎡ | ||
| 色温 | 2000K― 14000K | ||
| 视角 | H:160 °V:160° | ||
| 最大对比度 | 8000:1 | ||
| 输入电压 | AC 90-264V | ||
| 输入电源频率 | 50/60Hz | ||
| 灰度等级 | 16bit | ||
| 画面帧频 | 50/60Hz | ||
| 画面刷新率 | 3840Hz | ||
| 使用寿命 | ≥100,000Hours | ||
| 工作温湿度 | 0℃―+45℃/10―93%RH | ||
| 存储温湿度 | -10℃―+55℃/10―93%RH | ||
